Spring Antenna Products

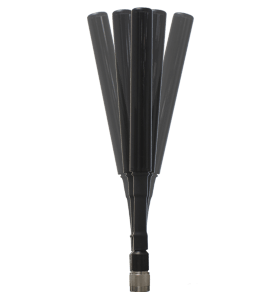

Octane Wireless’ spring antennas are the ideal antenna solutions for dismounted applications requiring a ruggedized, high performance antenna with a spring base. The spring base allows the antenna to return to the vertical position on a radio after impact.

1350 MHz – 5900 MHz models available
Spring base allows radiator to flex from radio/controller
Omni-directional in azimuth
Vertically polarized and horizontally polarized models available
TNC and N-type connectors available

Available Models

MODEL NUMBER	FREQUENCY	TYPICAL GAIN	POLARIZATION	STANDARD CONNECTOR	EXAMPLE APPLICATION
SV-1250-2650	1250 – 2650 MHz	3.0 dBi	Vertical	TNC Male	Federal L- and S-band
SH-1350-1390(3)	1350 – 1390 MHz	3.0 dBi	Horizontal	TNC Male	Federal L-band
SV-1350-1390(3)	1350 – 1390 MHz	3.0 dBi	Vertical	TNC Male	Federal L-band
SH-1350-1525(5)	1350 – 1525 MHz	5.0 dBi	Horizontal	TNC Male	Federal L-band
SV-1350-1525(5)	1350 – 1525 MHz	5.0 dBi	Vertical	TNC Male	Federal L-band
SV-1350-5000	1.35–1.5 / 2.2–2.5 / 4.4–5.0 GHz	4.0 dBi	Vertical	TNC Male	ISM, WiFi, Federal S- & C-band
SH-2025-2110	2025 – 2110 MHz	5.0 dBi	Horizontal	TNC Male	Broadcast Auxiliary Service
SH-2200-2500	2200 – 2500 MHz	5.1 dBi	Horizontal	TNC Male	Federal S-band
SH-2200-5000(3)	2200 – 2500 / 4400 – 5000 MHz	3.0 dBi	Horizontal	TNC Male	Federal S- and C-band
SV-2200-2500(3)	2200 – 2500 MHz	3.0 dBi	Vertical	TNC Male	Federal S-band
SV-2200-2500(5)	2200 – 2500 MHz	5.0 dBi	Vertical	TNC Male	Federal S-band
SV-2200-2500(6)	2200 – 2500 MHz	6.0 dBi	Vertical	TNC Male	Federal S-band
SV-2200-2500(7)	2200 – 2500 MHz	7.0 dBi	Vertical	TNC Male	Federal S-band
SV-2200-2500(8)	2200 – 2500 MHz	8.0 dBi	Vertical	TNC Male	Federal S-band
SH-4400-5000	4400 – 5000 MHz	5.4 dBi	Horizontal	TNC Male	Federal C-band
SV-4400-5000	4400 – 5000 MHz	5.4 dBi	Vertical	TNC Male	Federal C-band
SH-5000-5900	5000 – 5900 MHz	5.1 dBi	Horizontal	TNC Male	ISM & WiFi
SV-5000-5900	5000 – 5900 MHz	5.3 dBi	Vertical	TNC Male	ISM & WiFi
